Máquina de prensado en caliente de cartón para bandejas de huevos
| Nombre | Máquina de prensado en caliente de bandejas de huevos para corregir la forma. |
| Dimensión | 1200*800*1800mm |
| Presión laboral | 15 toneladas |
| fuerza | 6,5 KW |
| Temperatura de trabajo | 160~200℃ |
| Tiempo del ciclo de trabajo | 6-10 segundos |
| Se requiere aire comprimido | 0,5~0,6MPa, 1M3/minuto |
| Control | control PLC |
Ahora puede solicitar detalles técnicos a nuestros jefes de proyecto
An egg tray carton hot pressing machine is a machine for smoothing the surface of egg trays and egg trays, and for deep processing of egg trays. It is generally used for hot pressing after the forming box of the egg tray forming machine, and it can be packaged after the hot pressing.
The heat press only takes 6-10 seconds to press an egg tray, with extremely high production efficiency. At present, the hot press shaping machine has been sold to the United States, France, Vietnam, the Philippines, and other places.
Working video of egg tray hot press
Which products must be shape corrected?
Las bandejas para huevos de primera calidad y otros productos de papel requieren máquinas de prensado en caliente. Si los requisitos para la apariencia de la bandeja de huevos no son muy altos, se puede omitir la bandeja de huevos, pero otros productos de papel deben estar equipados con una máquina de prensado en caliente, como cajas de huevos, bandejas de frutas, bandejas de vino y bebidas de café. bandejas.
The function of the egg tray pressing machine
The hot press is used for shape correction after the egg tray is formed, which can make the surface of the egg tray or paper tray smoother. After using the hot press forming machine, the egg carton will be more beautiful, which can increase the price of the egg carton and produce it for the egg carton bringing higher profits.
How to use the egg tray hot pressing machine?

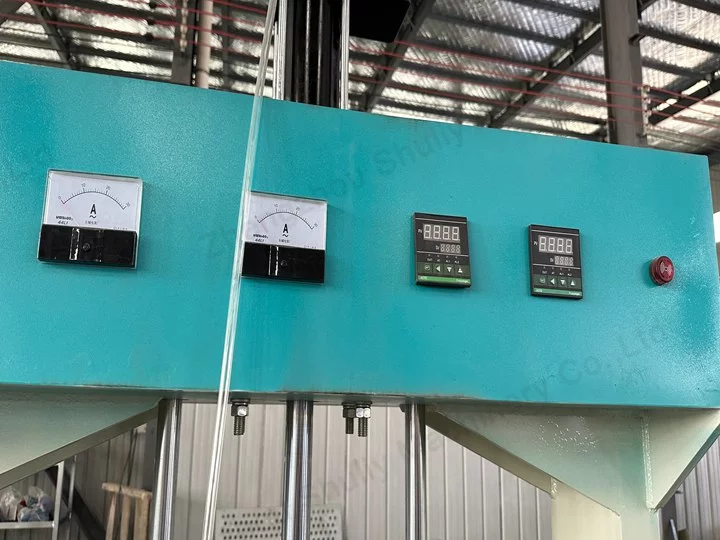

An egg carton hot pressing machine is a semi-automatic machine that needs to be manually operated. By hot pressing the machine, the surface of the egg carton and egg tray is more even. The temperature can be adjusted between 150-200 degrees Celsius according to actual needs.
It has a wide range of applications, which can be used to heat press egg cartons, wine trays, fruit trays, and other paper trays. The time required to hot press an egg tray is 6-10 seconds. Production efficiency is very high.
How an egg carton hot pressing machine works

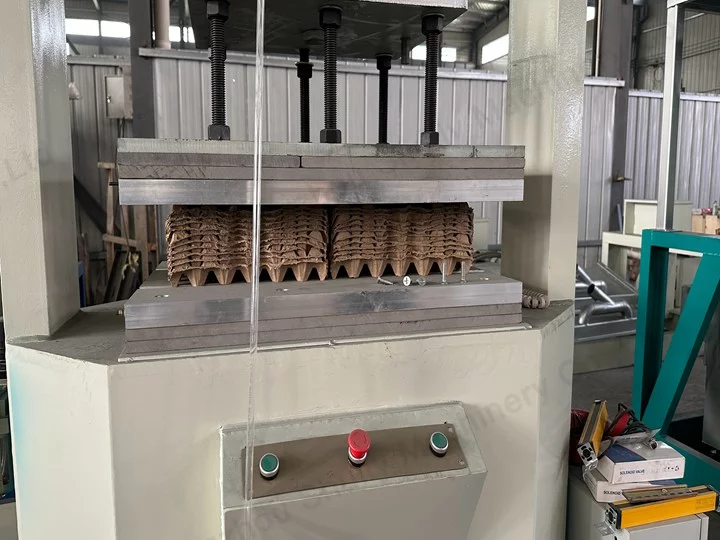

The egg tray heat press is formed by high temperature. When the surface of the egg carton is exposed to high temperature, the folds on the surface will become stretched, just like ironing clothes at home, which uses the same working principle. The temperature of the egg tray hot pressing machine can also be adjusted, which is very simple and convenient.

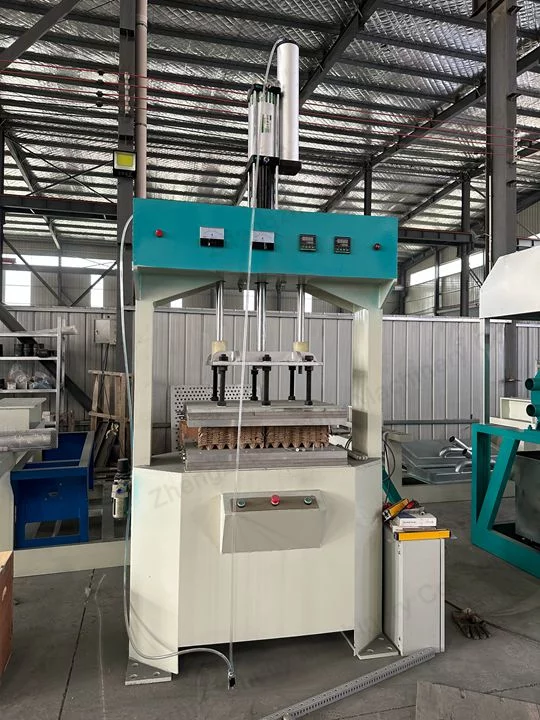

The structure of the hot press shaping machine

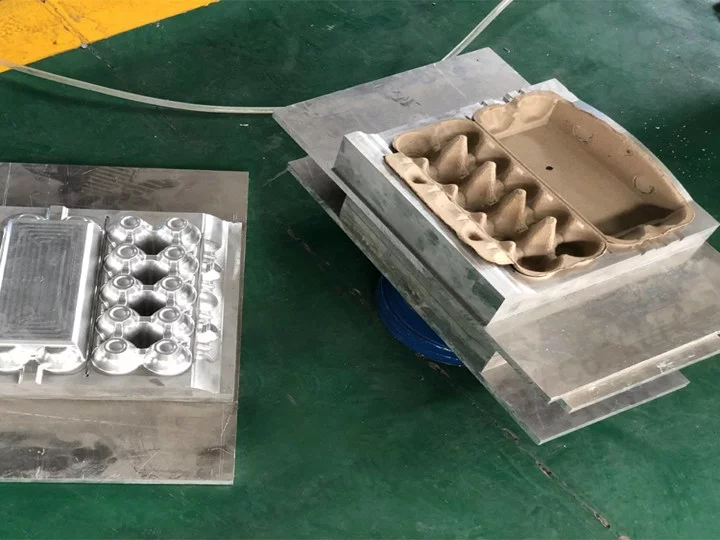

Los componentes principales de la máquina prensadora en caliente para bandejas de huevos incluyen el motor, el engranaje, el motor, el cojinete, la caja de cambios, etc. El componente principal es el motor. El molde de la prensa en caliente de la bandeja de huevos se puede reemplazar y es necesario reemplazar diferentes moldes para procesar diferentes bandejas de papel.
Advantages of the egg tray pressing machine
- Simple operation, one person can complete the egg tray hot pressing work.
- La máquina está equipada con un dispositivo contador que es fácil de operar.
- With an infrared safety device.
- With upper and lower mold blowing functions.
Parameters of the hot press forming machine
| Nombre | Máquina de prensado en caliente de bandejas de huevos para corregir la forma. |
| Dimensión | 1200*800*1800mm |
| Working pressure | 15 tons |
| Fuerza | 6,5 kw |
| Working temperature | 160~200℃ |
| Working cycle time | 6-10 segundos |
| Se requiere aire comprimido | 0.5~0.6mpa, 1m³/min |
| Control | control PLC |
FAQ
What is the function of an egg tray hot press machine?
Se utiliza para prensar bandejas de huevos de pulpa moldeada a altas temperaturas para hacerlas más lisas, duras y resistentes al agua, mejorando la apariencia y la durabilidad.
Can the machine be used for trays other than egg trays?
Sí, al cambiar el molde, se puede utilizar para bandejas de frutas, bandejas de botellas, portavasos y otros productos de pulpa moldeada.
Does hot pressing increase tray strength?
Sí, compacta la estructura de la fibra, mejorando la resistencia mecánica, la impermeabilidad y la resistencia a la deformación.
Can I customize the mold shape and logo?
Yes, we can produce molds with your desired tray shape, cell size, and embossed logo.
Does my egg tray production line need to be equipped with a hot press machine?
Not necessarily. A hot press machine is optional equipment. However, egg trays that have been hot pressed look better and can command a higher price.
